SigneT Class Rules (Inc. 2022 Amendments)
Specification
| Hull Construction | Moulded Marine Plywood on spruce framework |
| Spars | Mast 'C' section alloy silver anodised Boom: 2520 section alloy silver anodised |
| Dimensions | Length overall 12ft 4¾" (3.78m) Waterline length: 11ft 6" (3.51m) Maximum Beam: 4ft 11¾" (1.52m) |
| Draft | Centreboard down: 3ft 4" (1.02m) Centreboard up: 5" (0.13m) |
| Weight | 160lbs (73kg) minimum with up to 10lbs (4.5kg) of correctors. |
| Sail Area | Mainsail area 63 sq ft (5.86 sq m) Jib 25 sq ft (2.32 sq m) Genoa 42 sq ft (3.90 sq m) Spinnaker 90 sq ft (8.36 sq m) |
| Buoyancy | Built in 1500lbs (682 kg) |
| Portsmouth Yardstick | 1265 |
| Designer | Ian Proctor |

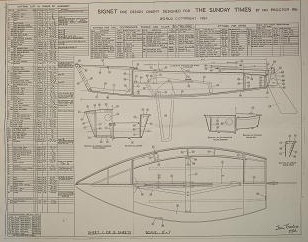

A full specification of measurements is normally issued with the plans to people building boats. Plans with their measurements are available from the Class Secretary - see contacts page.
